The following thumbnails are snapshots of Covered's new GUI report viewer (currently only available with the latest development releases). Click on a thumbnail to see the full-size picture.
|
|

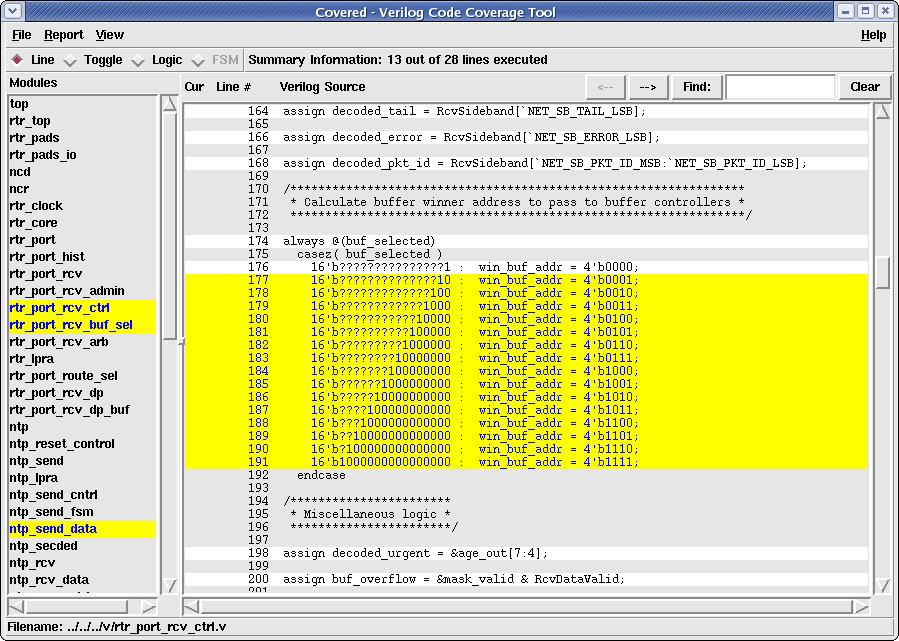

Line coverage for module-based report showing both covered (white) and uncovered (yellow) lines. |
|
|

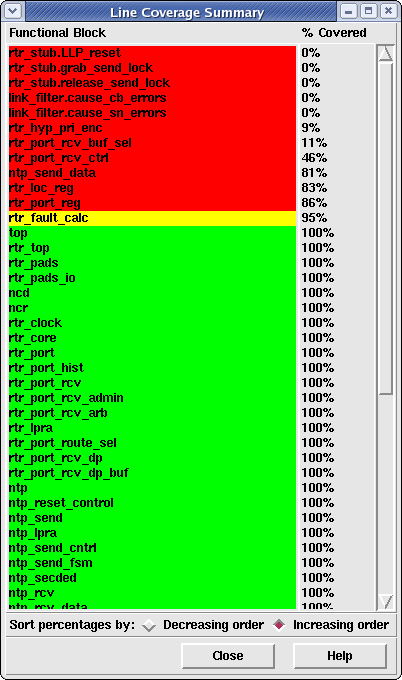

Summary window showing line coverage hit percentages for all modules in increasing order. Green = fully covered. Yellow = user has specified coverage is acceptable. Red = coverage percentage not acceptable. |
|
|
Detailed toggle coverage window showing a 4-bit signal that has fully toggled from 1->0 for bit 0, but has not toggled from 0->1 on the same bit. (All other bits have not toggled either). |
|
|

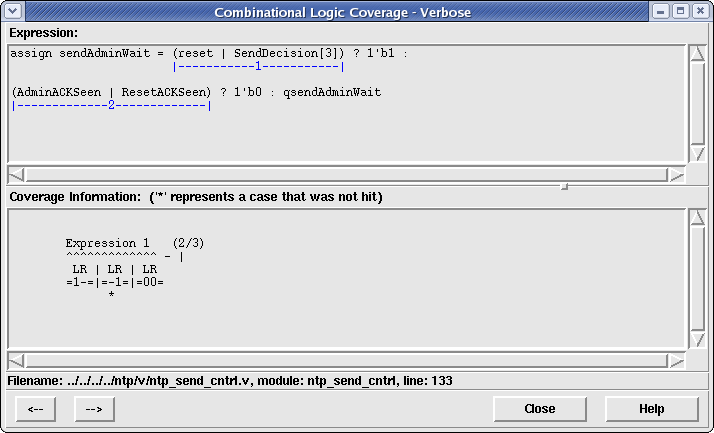

Detailed combinational logic coverage window showing an uncovered subexpression (labeled 1) that has not been found to be covered for the case where the right expression has evaluated to a 1 during simulation. |
|
|

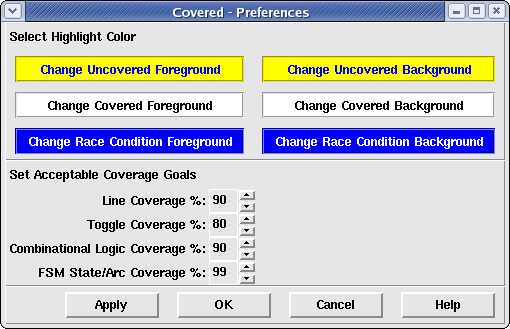

Preferences window. |
